Exercise 1-5

Start MODSIM and retrieve the Exercise 1-5 job from the Packed Jobs folder.

Edit the flowsheet and transform it as shown below.

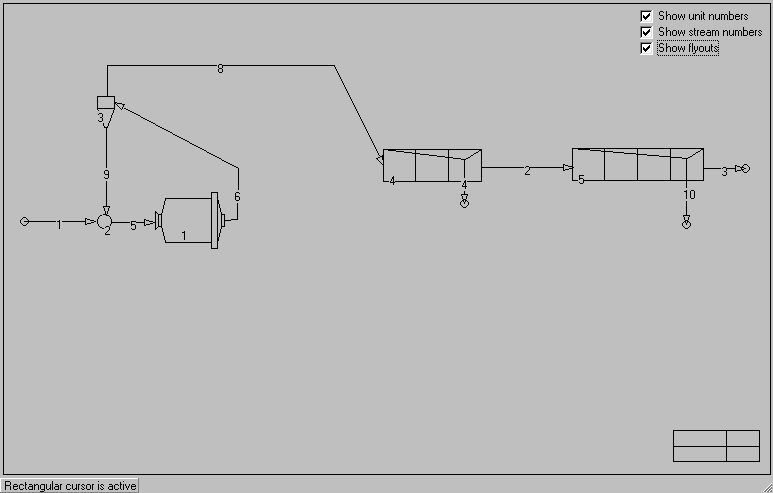

Figure 1 An untidy flowsheet.

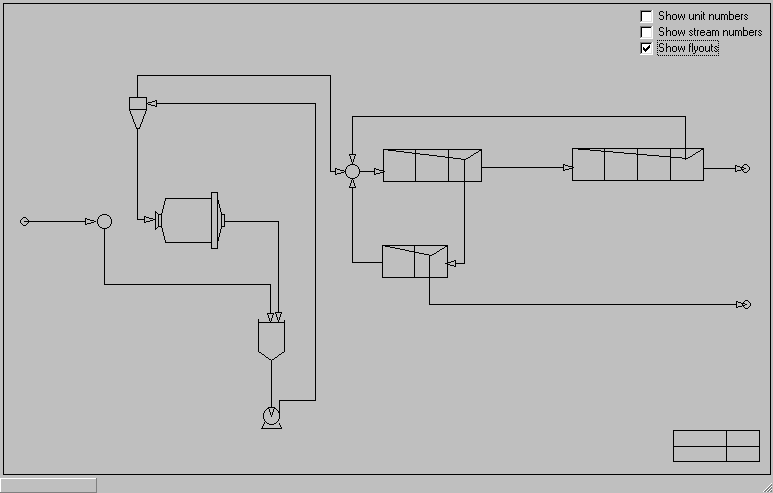

Figure 2 This one is much neater. Note that the feed stream was not deleted. This is good practice because deleting the feed stream will delete its associated data as well. That will mean specifying the data again.
